Introduction:
Imagine your smartphone running multiple apps smoothly while your laptop powers complex AI tasks without overheating or slowing down. Behind this seamless performance lies the crucial design of the tiny chips inside—known as integrated circuits (ICs). As technology advances, chipmakers are exploring new ways to pack more power and efficiency into smaller spaces. Two leading contenders are 2.5D and 3D IC architectures.
But which one will truly drive the future of computing? Just like stacking books neatly on a shelf (2.5D) versus building a multi-story library tower (3D),
these designs promise different advantages and challenges that could shape everything from your everyday devices to next-generation supercomputers.
Let’s dive into the world of chip stacking to see which architecture holds the key to tomorrow’s tech breakthroughs.
techovedas.com/what-is-2d-2-5d-3d-packaging-of-integrated-chips
Brief Overview: 5 Key Points to Know About 2.5D and 3D ICs

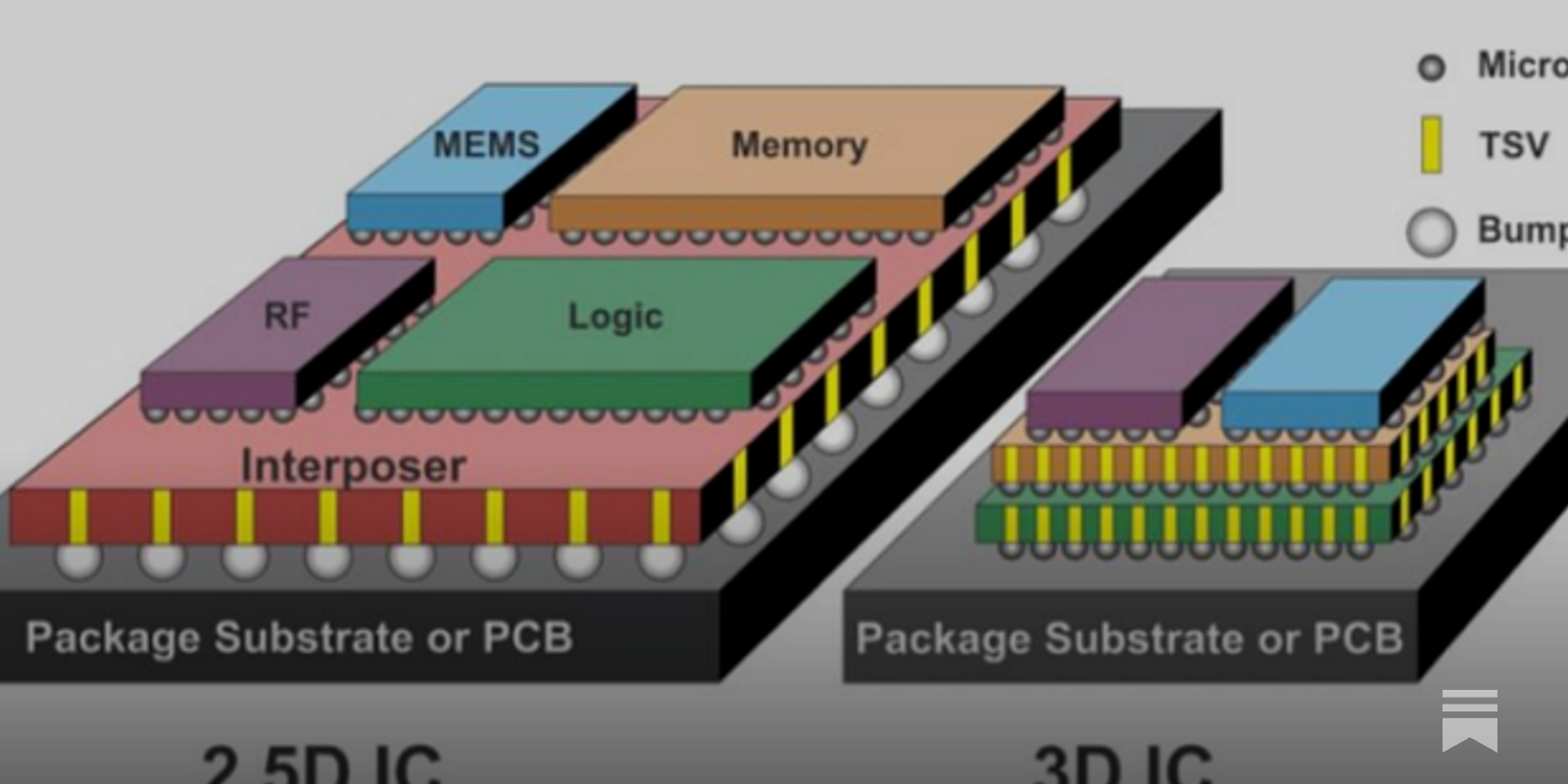

2.5D ICs arrange dies side-by-side on an interposer; 3D ICs stack dies vertically.
Interposers in 2.5D provide dense horizontal connections; 3D ICs use vertical Through-Silicon Vias (TSVs).
3D ICs enable higher integration density but face greater cooling and design complexity.
2.5D ICs excel in moderate complexity with easier thermal management.
Both technologies target performance gains, reduced power, and smaller footprint beyond traditional transistor scaling.
techovedas.com/indias-semiconductor-market-projected-to-exceed-100-billion-by-2030-as-per-govt
What Are 2.5D ICs?
2.5D integrated circuits bring multiple dies together on a shared platform called an interposer.
This interposer, typically made from silicon or glass, acts like a dense, high-speed circuit board, enabling close and fast communication between chips.
Think of 2.5D ICs as a “city on a single floor,” where each building (chip) sits side-by-side, connected by roads (the interposer).
This setup dramatically improves signal speed and power efficiency compared to traditional multi-chip modules where components are mounted on separate printed circuit boards (PCBs).

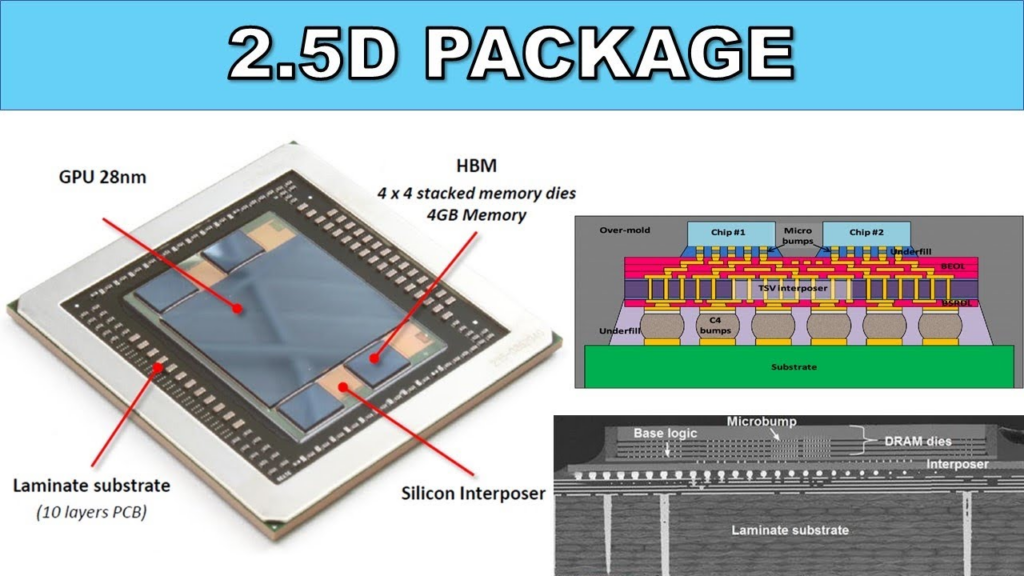

For example, AMD’s Radeon GPUs use 2.5D packaging to connect their main logic die to multiple High Bandwidth Memory (HBM) stacks. This design achieves data transfer speeds up to 2 TB/s with significantly reduced energy use.
The 2.5D approach allows:
- Integration of heterogeneous technologies (logic, memory, RF) on one platform
- Relatively easier thermal management compared to 3D stacks
- Moderate design complexity, facilitating faster time to market
Follow us on Twitter: https://x.com/TechoVedas
What Are 3D ICs?
3D integrated circuits take integration a step further by stacking dies vertically. They connect these layers using tiny vertical conduits called Through-Silicon Vias (TSVs), which pass signals and power directly through the silicon substrate.
Picture a skyscraper with multiple floors connected by elevators (TSVs), drastically reducing the distance data must travel between layers. This vertical stacking minimizes signal delay and enables ultra-high bandwidth, making 3D ICs ideal for data-intensive applications.
Intel’s Foveros 3D stacking technology represents a pioneering example, stacking logic chips vertically for mobile and data center CPUs. Samsung employs 3D stacking in its HBM memory solutions, and Apple’s M-series chips leverage 3D-like integration to pack more compute power into compact devices.
However, 3D ICs face challenges:
- Cooling becomes difficult as heat dissipates less easily through vertical layers
- Manufacturing complexity rises due to precise alignment and bonding of layers
- Higher costs compared to 2.5D ICs
Explained: What the hell is 3D IC packaging?
Technical Comparison Table: 2.5D vs 3D ICs
| Feature | 2.5D IC | 3D IC |
|---|---|---|
| Die Arrangement | Side-by-side on interposer | Vertically stacked layers |
| Interconnect Type | Horizontal interposer wiring | Vertical Through-Silicon Vias (TSVs) |
| Signal Travel Distance | Moderate (horizontal) | Minimal (vertical) |
| Cooling Efficiency | Easier, better heat spread | Challenging, risk of hotspots |
| Integration Density | Medium | Very high |
| Design Complexity | Moderate | High |
| Cost | Lower | Higher |
| Common Use Cases | GPUs, FPGAs, HBM integration | AI accelerators, advanced CPUs, memory stacks |
| Example Technologies | AMD Radeon GPUs, Xilinx FPGAs | Intel Foveros, Samsung HBM, Apple M-series |
Why Do These Technologies Matter?
As transistor scaling slows, “More than Moore” innovations like 2.5D and 3D ICs are key to keeping chip performance on track. They enable:
- Faster data movement by shortening interconnect lengths
- Lower power consumption through efficient communication pathways
- Compact device form factors critical for mobile and edge devices
- Integration of diverse technologies (e.g., logic, memory, RF, sensors) on one chip platform
Market forecasts by Yole Dévelopement estimate that advanced chip packaging markets will grow from $3.5 billion in 2023 to over $10 billion by 2030, driven by demand in AI, 5G, HPC, and automotive sectors.
Intel to Build First Overseas 3D Chip Packaging Facility in Malaysia
Real-World Applications
- Smartphones: Apple’s M-series chips use 3D-like integration for power-efficient performance.
- AI accelerators: 3D ICs bring memory and compute closer, boosting AI training speed.
- Graphics cards: AMD’s Radeon GPUs leverage 2.5D to connect logic and HBM memory efficiently.
- Data centers: Both 2.5D and 3D ICs reduce latency and improve bandwidth for cloud computing.
techovedas.com/made-in-india-tata-electronics-exports-first-batch-of-semiconductor-chips
Conclusion: The Future of Chip Architecture
Choosing between 2.5D and 3D ICs depends on the application’s performance, power, size, and cost requirements. While 2.5D offers a balanced, cost-effective solution, 3D ICs push performance boundaries with greater integration density.
The future of semiconductors will rely heavily on these architectures to meet the soaring demands of AI, 5G, edge computing, and beyond. For engineers, investors, and tech enthusiasts, understanding these packaging innovations is critical.
