Introduction
The world of semiconductor manufacturing is constantly evolving, and one of the critical drivers of progress is Outsourced Semiconductor Assembly and Test (OSAT) services.
These OSAT Services rely on advanced packaging and bonding technologies to ensure chips are not only functional but efficient, compact, and durable.
As devices continue to shrink in size while becoming more powerful, packaging technologies play a crucial role in meeting these demands.
In this article, we’ll dive into seven key technologies that OSAT Services in Semiconductor Packaging are transforming semiconductor packaging.
techovedas.com/how-advanced-packaging-is-merging-semiconductor-manufacturing-and-packaging
Key Overview:
Wire Bonding – Connecting chips to their packages.
Flip-Chip Bonding – Direct connections for better performance.
Wafer-Level Packaging (WLP) – Efficient, compact, and cost-effective.
Die-Attach Technology – Ensuring secure attachment of the chip.
Encapsulation/Molding – Protecting chips from environmental damage.
Ball Grid Array (BGA) – Efficient connections using solder balls.
System-in-Package (SiP) – Compact integration of multiple chips.
/techovedas.com/13-semiconductor-terms-everyone-must-know

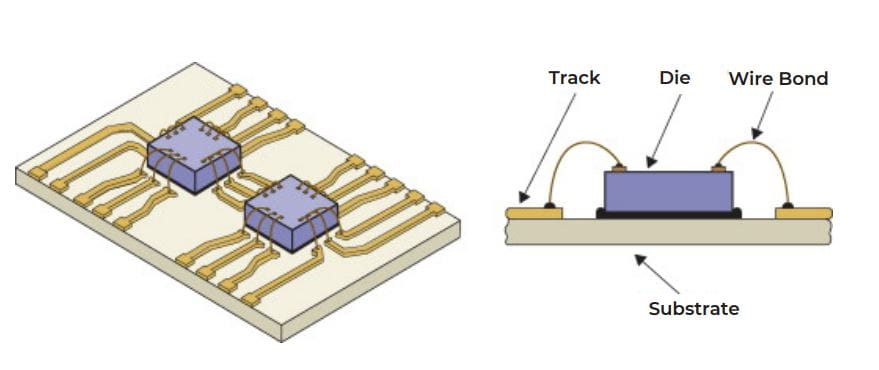

1. Wire Bonding: The Foundation of Chip Connectivity
Wire bonding ranks among the most widely used technologies for connecting semiconductor chips to their packages. In this process, engineers use thin gold or copper wires to form electrical paths between the chip (or die) and the package’s external connections.
What is Wire Bonding? In simple terms, wire bonding is the process of attaching small wires to the chip’s bonding pads, then connecting them to the package. This process allows the chip to communicate with other components in the system.
A Simple Analogy: Think of it like wiring a house. Just as wires connect different rooms to the electrical grid, wire bonding connects the chip to the package’s electrical system.
Why It Matters: Wire bonding is still commonly used in a variety of applications because it’s cost-effective and reliable, especially for traditional and low-cost devices. However, as performance demands increase, alternatives like flip-chip bonding are becoming more common.
techovedas.com/10-osat-fab-terms-you-should-know-about
2. Flip-Chip Bonding: The Power of Direct Connections
Flip-chip bonding takes chip connectivity to the next level. Instead of connecting the chip to the package using wires, this method flips the chip upside down and directly connects it to the substrate with solder bumps. This method provides a better connection, faster performance, and superior thermal management.
What is Flip-Chip Bonding? With flip-chip bonding, the chip’s active side faces down, and solder bumps are used to create a direct connection to the circuit board. This eliminates the need for long wire bonds and provides a more efficient path for signals and power.
A Simple Analogy: Imagine flipping a pancake and placing it directly onto a warm plate. Without anything in between, the pancake heats up faster, just like a flip-chip bonded chip improves heat dissipation and electrical performance by being directly connected to the substrate.
Why It Matters: This technology is essential for high-performance devices such as smartphones, computers, and AI processors, where speed and thermal management are critical.
3. Wafer-Level Packaging (WLP): Miniaturizing the Process
Wafer-Level Packaging (WLP) is a groundbreaking technology that allows semiconductors to be packaged while they are still part of the wafer. By skipping the traditional step of cutting and handling each individual chip, WLP streamlines production, reduces costs, and offers better performance.
What is WLP? Instead of processing each chip separately, WLP packages the chip directly on the wafer. This enables a faster, more cost-efficient process, leading to more compact and energy-efficient chips.
A Simple Analogy: Think of decorating cookies while they’re still on the tray, before cutting them into individual pieces. This approach saves time and reduces handling, much like WLP simplifies the packaging process for semiconductors.
Why It Matters: WLP is key to making smaller, more affordable chips for mobile phones, wearables, and IoT devices. It reduces packaging size while maintaining or improving performance.
4. Die-Attach Technology: Securing the Heart of the Chip
Die-Attach Technology is essential for securing the semiconductor die (chip) to the substrate or package. In this process, adhesive materials are used to keep the chip firmly in place, ensuring it functions properly and withstands thermal stress.
What is Die-Attach Technology? This technology involves using a precise adhesive to attach the semiconductor die to OSAT Services in its package or substrate. The adhesive must be strong enough to withstand the device’s operating conditions, yet precise enough to maintain the chip’s electrical and thermal performance.
A Simple Analogy: It’s like gluing a photo onto a frame. The adhesive ensures that the photo stays in place, just as die-attach technology keeps the chip in place for optimal performance.
Why It Matters: A reliable die-attach ensures the chip stays secure and performs efficiently over time. It is especially important in high-end computing devices, automotive sensors, and other advanced applications.
5. Encapsulation/Molding: Protecting the Chip’s Lifespan
Encapsulation is the process of covering the semiconductor die and its connections with a protective resin or mold. This layer shields the chip from moisture, dust, and physical damage, ensuring long-lasting performance.
What is Encapsulation? In encapsulation, the chip is sealed in a protective material, often made of epoxy resin. This mold acts as a barrier against external factors that could potentially damage the chip.
A Simple Analogy: Encapsulation is like wrapping a delicate gift with bubble wrap to ensure it arrives safely. The mold protects the chip’s fragile components during transport and use, just like bubble wrap protects fragile items.
Why It Matters: Encapsulation is critical for protecting chips used in rugged environments, such as automotive electronics, industrial machinery, and medical devices, where they must operate reliably in harsh conditions.
6. Ball Grid Array (BGA): Efficient Connections with Precision
Ball Grid Array (BGA) is a popular packaging technology where small solder balls are placed in a grid on the underside of the chip package. These solder balls form the electrical connections to the PCB (printed circuit board).
What is BGA? In BGA (Ball Grid Array) technology, solder balls form the electrical connections. These balls sit in a grid on the underside of the chip. When you place the chip on the PCB, the solder balls directly connect it to the board, delivering both power and signals efficiently.
A Simple Analogy: It’s like fitting Lego pieces together. The solder balls on the chip fit into corresponding holes on the circuit board, creating a solid and secure connection.
Why It Matters: BGA provides reliable, high-density connections in a compact form factor. It suits devices that demand both high performance and efficient use of space, such as smartphones, laptops, and gaming consoles.

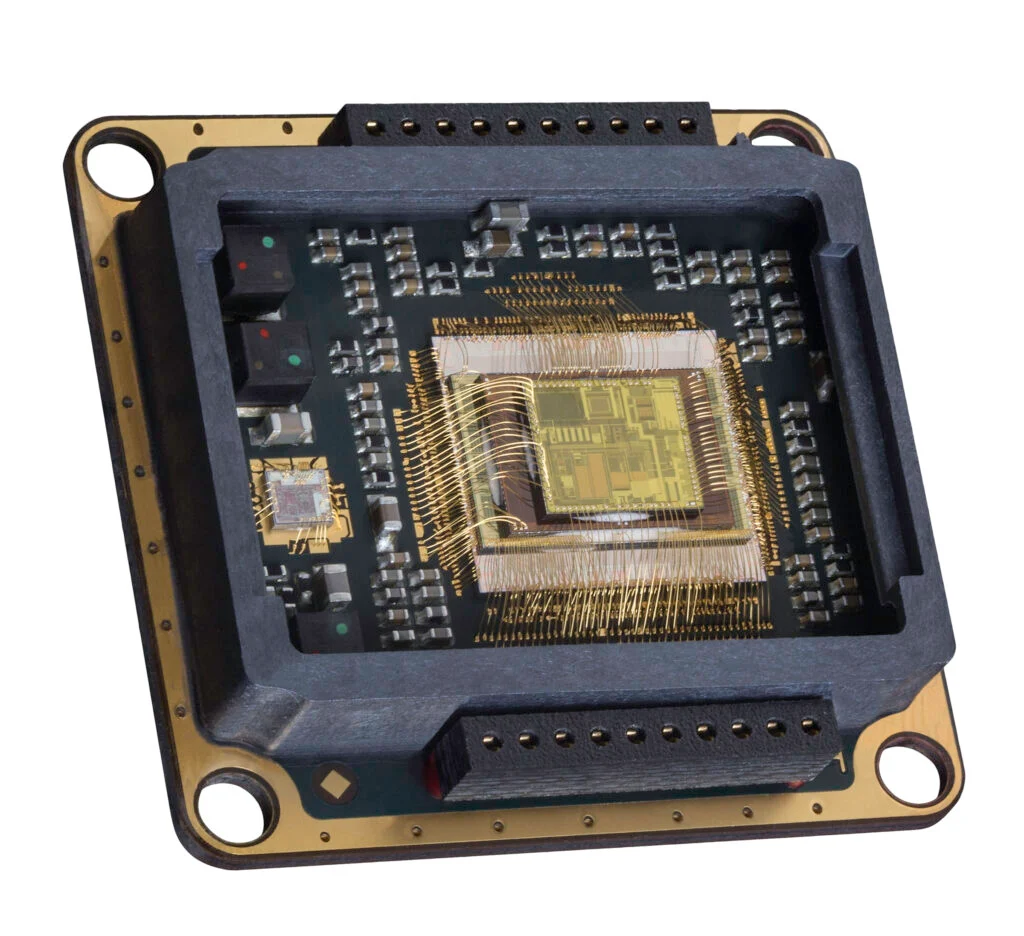

7. System-in-Package (SiP): Compact Integration of Multiple Chips
System-in-Package (SiP) is a technology that integrates multiple chips or components into a single, compact package. This allows the chips to work together seamlessly, saving space and improving efficiency.
What is SiP? SiP technology places several chips into a single package, which can include processors, memory, and other components. These chips communicate with each other within the package, enabling faster, more efficient systems.
A Simple Analogy: Think of it like packing different tools into one toolbox. Each tool (chip) has its own job but works together in the compact package to provide a complete solution.
Why It Matters: SiP is ideal for devices that require high performance but need to stay small, like wearables, medical devices, and advanced IoT systems. It enables more efficient designs without compromising on functionality.
