Breaking Down the Cost: What Makes a 3nm Semiconductor Wafer So Costly?

A single 3nm wafer can cost a whopping $20,000, driven by expensive equipment, lower yields, and cutting-edge processes like EUV lithography. Let's see why.

Introduction

The semiconductor industry drives today’s innovation, powering everything from smartphones to AI systems. At the forefront stands Taiwan Semiconductor Manufacturing Company (TSMC), the world’s leading chip foundry. Recently, a new chart from Semi Vision revealed detailed wafer pricing trends across TSMC’s Semiconductor Wafers major process nodes, including the cutting-edge 3nm Semiconductor Wafer and the futuristic A16 node.

This article dives into the data, explaining why wafer costs soar for newer nodes, the impact on chip design, and what it means for the global semiconductor industry’s future.

techovedas.com/openai-secures-tsmcs-a16-angstrom-process-for-next-generation-ai-chip-development

Brief Overview: 5 Key Points on TSMC Wafer Pricing (2020–2026)

7 nm and 5 nm wafer prices are gradually declining, reflecting mature manufacturing.

3 nm wafers debuted at around $20,000 in 2023, then softened slightly by 2026.

2 nm wafers, launching in 2024, cost roughly $30,000 per wafer and signal a tech leap.

The A16 node (sub-2 nm) will hit a staggering $45,000 per wafer by 2026.

Rising wafer costs highlight growing economic barriers for smaller chipmakers.

techovedas.com/4-billion-investment-globalwafers1-doubles-down-on-u-s-expansion-with-new-factory

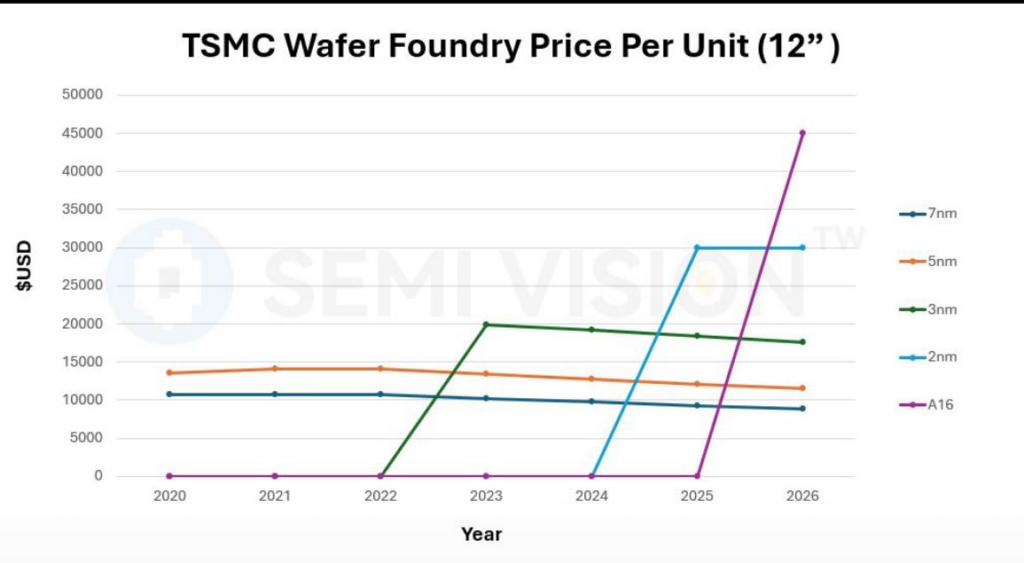

Understanding Wafer Prices: What the Data Shows

Process Node2020 Price (USD)2023 Price (USD)2026 Projected Price (USD)
7 nm~$10,000+N/A (mature)<$9,000
5 nm~$14,000+~$14,000~$13,000
3 nmN/A~$20,000<$18,000
2 nmN/A~$30,000 (2024)~$30,000
A16 (sub-2 nm)N/AN/A (2025 launch)~$45,000

Source: Semi Vision, compiled by Techovedas.com

Legacy Nodes: 7 nm and 5 nm Prices Slide as They Mature

TSMC’s 7 nm and 5 nm process nodes now serve large markets like automotive electronics, IoT devices, and mid-range smartphones. The wafer prices for these nodes have steadily decreased from 2020 onward, reflecting improved yields and economies of scale.

For example, the 7 nm wafer price dropped from just over $10,000 in 2020 to under $9,000 by 2026. Meanwhile, 5 nm wafers have held steady near $14,000 but are expected to decline slightly to around $13,000 by 2026.

This price trend signals that mature nodes will continue to play a vital role in cost-sensitive, high-volume markets despite the excitement around next-generation technologies.

techovedas.com/tsmc-2nm-ambitions-scaling-to-130000-wafers-monthly-by-2026-with-game-changing-performance-boosts

3 nm Wafers: Cutting-Edge Performance Comes at a Premium

3nm Semiconductor Wafer node launched commercially in 2023 with wafer prices around $20,000—a steep premium compared to mature nodes. This price reflects the complexity of extreme ultraviolet (EUV) lithography and lower initial yields during production ramp-up.

Top-tier customers like Apple are early adopters, willing to pay the high costs for the power efficiency and performance gains that 3 nm chips offer in flagship smartphones and high-end computing devices.

By 2026, prices are projected to ease slightly to just below $18,000 as manufacturing stabilizes and volumes increase.

Follow us on Linkedin for everything around Semiconductors & AI

2 nm Node and Beyond: The Rise of Super-Premium Wafers

The 2 nm node, expected to debut in 2024, pushes wafer prices even higher—roughly $30,000 per wafer. This jump accompanies a major architectural shift to gate-all-around (GAA) transistors, which improve power efficiency and chip density.

This node is likely to be limited to large technology companies developing next-generation AI processors, mobile SoCs, and advanced computing platforms due to its massive cost and complexity.

The A16 Node: Welcome to the Angstrom Era and $45,000 Wafers

TSMC’s A16 node, possibly the industry’s first angstrom-class node, is forecasted to hit $45,000 per wafer by 2026.

This jaw-dropping price stems from massive investments in R&D, advanced materials, and new manufacturing techniques like backside power delivery and 3D packaging.

Such wafer pricing suggests A16 will remain an ultra-premium node, reserved for specialized high-performance applications in AI, supercomputing, and flagship mobile chips.

techovedas.com/tsmc-a16-takes-on-intel-14a-and-samsung-sf1-4-in-the-angstrom-arena

What Rising Wafer Costs Mean for the Semiconductor Industry

As wafer prices soar from 3nm to the ultra-advanced A16 node, the semiconductor industry faces new economic realities. These rising costs are reshaping innovation, strategy, and competition worldwide.

Foundries as Tech Partners: TSMC and others now shape industry direction as strategic collaborators, not just suppliers.

Moore’s Law Gets Costlier: Only a few tech giants can afford cutting-edge nodes due to steep wafer price increases.

Hybrid Node Strategies Gain Traction: Combining mature and advanced nodes through chiplets helps balance cost and performance.

Higher Barriers for Startups :Smaller firms struggle to access premium nodes and often rely on mature technologies or partnerships.

Strategic National Investments Accelerate: Programs like the U.S. CHIPS Act and India Semiconductor Mission boost local chip manufacturing.

techovedas.com/6-1-billion-u-s-grants-to-micron-under-chips-act-while-samsung-negotiations-face-delays

Conclusion: The Future of Wafer Costs and Chip Innovation

TSMC’s wafer pricing trends reveal a clear truth: semiconductor progress is now as much about economics as engineering.

With wafer prices climbing to tens of thousands of dollars for the latest nodes, innovation demands both technical breakthroughs and financial might.
