Introduction
In today’s digital era, electronic devices like smartphones, laptops, and smartwatches have become integral to our daily lives. Yet, behind the functionality of these gadgets lies a remarkable but often overlooked technology—silicon wafers.
These thin, circular discs of silicon are the building blocks of the integrated circuits (ICs) that power nearly all electronic devices.
This article explores silicon wafers, explaining what they are, how manufacturers make them, and why they are vital to everyday electronics.
Let’s dive into the journey of these microscopic marvels that drive the digital revolution.
https://medium.com/p/80c2d1eec6b5
Quick Overview of Silicon Wafers
How They’re Made: Manufacturers slice these wafers from large silicon crystals. They then undergo intense processing to achieve smoothness and purity.
What They Are: Silicon wafers are thin, crystalline discs made from pure silicon. They serve as the foundation for microchips in electronic devices.
The Role of Photolithography: Photolithography etches billions of tiny electronic components onto the wafer’s surface to create microchips.
Why Silicon?: Silicon works well as a semiconductor. Its stable atomic structure and tunable electrical conductivity make it ideal.
The Industry Behind Them: Companies like GlobalWafers and TSMC lead wafer production. They manufacture millions of wafers to support the global semiconductor industry.
What Are Silicon Wafers?

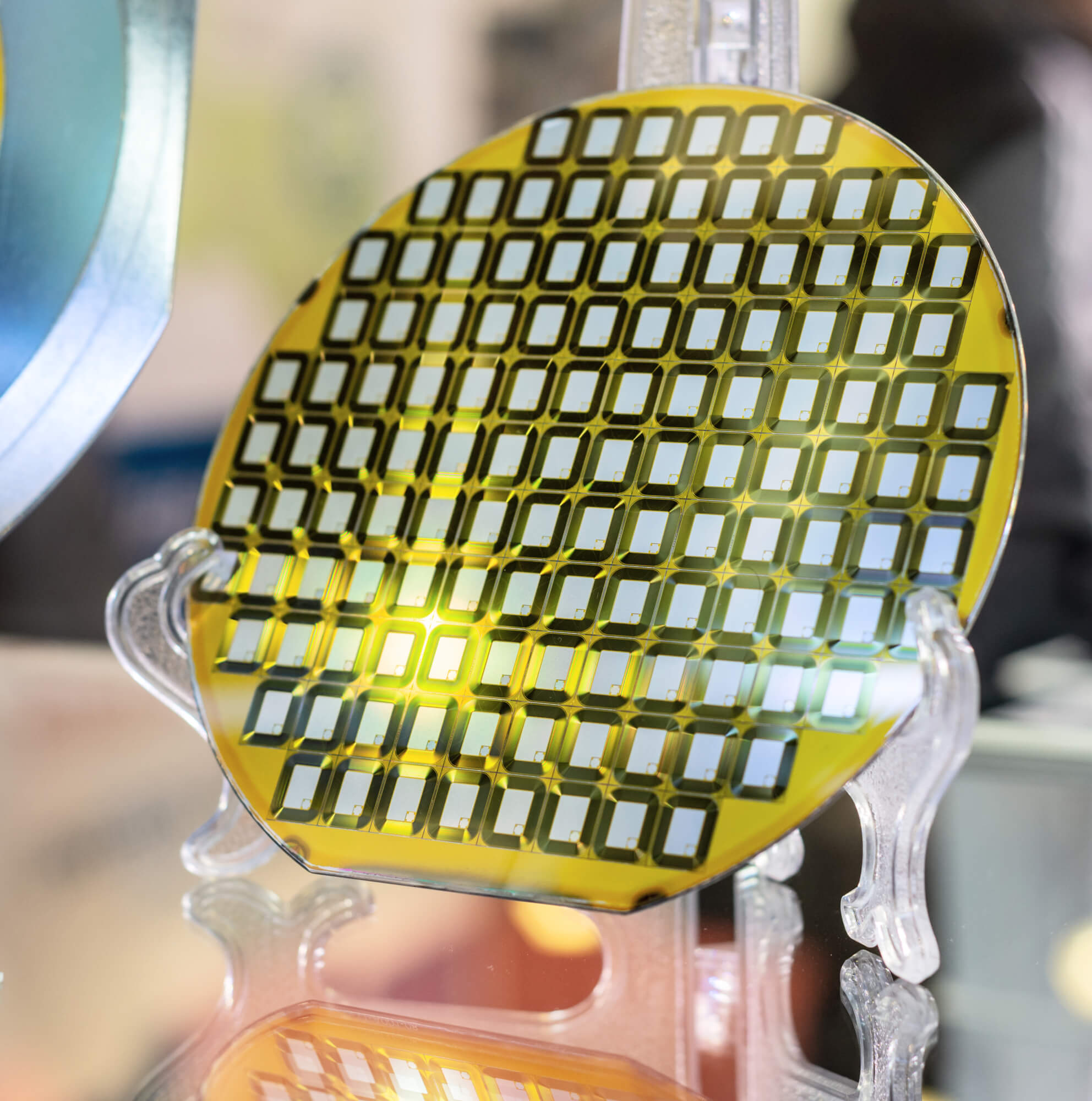

In its simplest form, a silicon wafer is a thin, circular disc made from highly purified, crystallized silicon.
These wafers are integral to the production of integrated circuits (ICs), which are embedded in nearly every electronic device today.
From smartphones to servers, silicon wafers form the backbone of modern technology.
Each wafer typically has a diameter ranging from 1 to 12 inches. The most common size in commercial applications is 6 inches.
These wafers are extraordinarily thin, often as thin as 0.03 millimeters—roughly 1/100th the thickness of a human hair.
Despite their delicate appearance, these silicon discs are essential for creating chips that power the electronics we depend on every day.
How Are Silicon Wafers Manufactured?
The process of creating silicon wafers begins with raw materials, often quartzite sand, which is rich in silicon dioxide.
This material is heated to high temperatures and chemically reduced to create metallurgical-grade silicon.
From there, the silicon undergoes further purification processes until it is pure enough for use in semiconductor production.
Once purified, the silicon is shaped into large, cylindrical ingots. These ingots can weigh hundreds of kilograms and measure over a meter tall.
Using diamond wire saws, manufacturers slice the ingots into thin wafers, often with hundreds of individual wafers emerging from a single ingot.
The resulting slices are far from ready for microchip production, however. They are then subjected to a series of processes, including:
Acid Etching: Removes cutting damage and contaminants.
Polishing: Ensures an ultra-smooth surface with minimal imperfections.
Cleaning: Removes any residual particles or contamination.
Inspection: Wafers are rigorously checked for defects, as even the smallest flaw can render them unusable.
Once the wafers are prepared, a layer of silicon oxide is deposited onto the surface, creating a perfect canvas for the photolithography process that follows.
/techovedas.com/tsmc-global-expansion-strengthening-semiconductor-leadership-in-the-u-s-and-taiwan/
The Magic of Photolithography
Photolithography is a sophisticated technique used to etch intricate electrical components onto the surface of silicon wafers.
It involves applying a light-sensitive chemical called photoresist to the wafer and then exposing it to ultraviolet light through a mask that defines the desired pattern.
Here’s how the process works:
Coating: The wafer is coatedCoating: The wafer receives a layer of photoresist, a light-sensitive material.
Exposure: A mask with the circuit pattern covers the wafer. Ultraviolet (UV) light shines through the mask, making the exposed photoresist soluble.
Development: A chemical wash removes the soluble photoresist, revealing the circuit pattern.
Etching: Chemicals dissolve the unprotected areas, creating circuit paths.
Ion Implantation: Engineers implant ions into specific regions to change electrical properties.
By repeating this process, manufacturers imprint billions of tiny transistors and components onto the wafer, creating a fully functional microchip.
Why Silicon? The Perfect Semiconductor
Silicon is not the only material that can used to create semiconductors, but it remains the most popular for several reasons.
Silicon atoms bond easily with neighboring atoms, forming a stable, nearly defect-free lattice structure.
This allows for large-scale, high-quality crystal growth, which is essential for producing reliable semiconductors.
Furthermore, silicon has inherent semiconductor properties, meaning it does not conduct electricity as well as metals but can altered through the addition of small amounts of other materials.
This process, known as doping, introduces impurities like boron or phosphorus to the silicon lattice.
These impurities either add extra electrons (n-type doping) or create “holes” that allow electrons to flow (p-type doping).
By carefully controlling the doping process, manufacturers can fine-tune the electrical conductivity of the material.
The Industry Behind Silicon Wafers
The global silicon wafer market is led by a few key players that have scaled operations to meet the rising demand for semiconductors. Some of the largest companies include:
GlobalWafers: Headquartered in Taiwan, GlobalWafers is the largest pure-play silicon wafer manufacturer. It produces over 2 million wafers each month.
SUMCO: A Japanese company, SUMCO specializes in high-end wafers, including 300mm wafers used in advanced chips.
TSMC and Samsung: These companies follow a vertically integrated model. They control the entire supply chain, from wafer fabrication to finished semiconductor products.
TSMC alone produces millions of wafers annually, investing heavily in advanced technology to push the limits of semiconductor manufacturing.
These companies manufacture billions of silicon wafers yearly. They supply these wafers to foundries, which transform them into microchips. These microchips power everything from consumer electronics to automotive systems.
techovedas.com/australia-banned-deepseek-ai-on-government-devices-over-security-concerns/
The Future of Silicon and Beyond
Silicon still leads the semiconductor industry. However, material science is advancing rapidly. Researchers are exploring new semiconductors like gallium arsenide and graphene.
These materials offer superior conductivity and faster switching speeds.. They offer superior conductivity and faster switching speeds. These materials could lead to faster and more energy-efficient devices.
Researchers are also investigating quantum computing and nanotechnology, both of which may rely on alternative materials or entirely new fabrication techniques.
However, for now, silicon remains the backbone of the digital world, powering the devices we use daily and enabling new technological advances on the horizon.
Conclusion
Silicon wafers may seem like simple, unassuming discs of material, but they are, in fact, the bedrock of modern electronics.
Without these wafers, the devices we rely on would not exist. The precision required to produce them, combined with the cutting-edge techniques used to create microchips, makes silicon wafer production one of the most sophisticated manufacturing processes in the world.
As technology continues to evolve, so too will the methods and materials used to manufacture semiconductors.
However, for the foreseeable future, silicon will continue to play a central role in shaping the future of electronics, powering everything from the latest smartphones to the computers of tomorrow.
