TSMC Breaks the Thermal Wall: 5 Game-Changing Facts About Its Direct-to-Silicon Liquid Cooling

TSMC introduces Direct-to-Silicon Liquid Cooling, embedding microfluidic channels within the chip itself. Integrated with CoWoS®-R, it boosts AI accelerators.

Introduction

When power meets heat, innovation follows. At the 2025 IEEE Electronic Components and Technology Conference (ECTC), TSMC unveiled a breakthrough that could reshape the limits of chip performance — Direct-to-Silicon Liquid Cooling integrated into its CoWoS® packaging platform.

This technology directly addresses one of the biggest bottlenecks in AI and high-performance computing (HPC): the thermal wall.

As chips get denser and faster, keeping them cool becomes exponentially harder. TSMC’s latest solution doesn’t just manage heat — it integrates cooling directly into the silicon, setting the stage for a new era of ultra-efficient chip design

techovedas.com/teradyne-wins-tsmc-oip-2025-partner-of-the-year-powering-the-future-of-ai-chip-testing

5-Point Overview

  1. TSMC introduces Direct-to-Silicon Liquid Cooling, embedding microfluidic channels within the chip itself.
  2. The innovation reduces thermal resistance by 15% compared to traditional liquid cooling.
  3. It enables thermal design power (TDP) levels above 2.6 kW, shattering previous limits.
  4. Integrated with CoWoS®-R, it supports massive interposers and HBM stacks for AI accelerators.
  5. The breakthrough aligns with TSMC’s 3DFabric and CMOS 2.0 roadmap for sustainable, high-density computing.

The Thermal Wall: The Biggest Roadblock in AI Computing

AI training chips and data center accelerators now consume more power than ever. As transistor counts surge into the trillions and chiplet integration expands, the heat generated per square millimeter has become a major engineering challenge.

Traditional air cooling — once sufficient for CPUs — can’t handle power densities exceeding 4.8 W/mm². Even high-end liquid-cooled heat sinks struggle with TDPs beyond 1,000 watts, creating thermal hotspots that degrade silicon performance and reliability.

This limit, often called the “thermal wall,” restricts how much power and performance can be packed into advanced semiconductor designs. Without a radical shift in cooling, even the most advanced chips risk being throttled by heat rather than computational limits.

/techovedas.com/imec-achieves-seamless-integration-of-inp-chiplets-on-300mm-rf-silicon-interposer-for-high-frequency-communications

Cooling Inside the Silicon

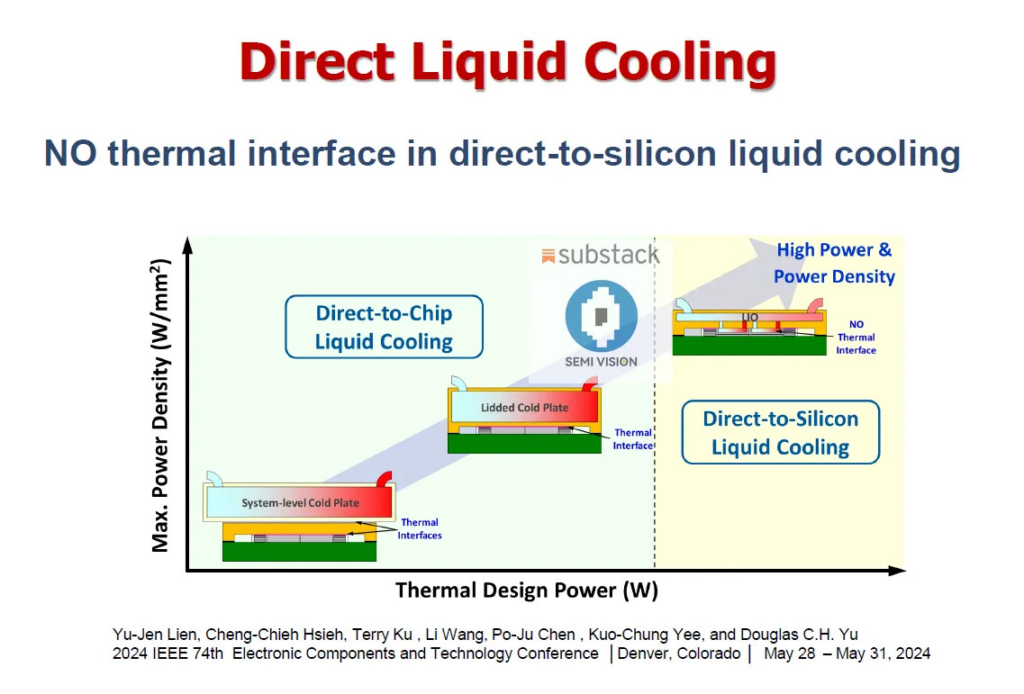

TSMC’s new Direct-to-Silicon Liquid Cooling (DSLC) flips traditional cooling on its head. Instead of passing heat through multiple layers — thermal paste, lids, and plates — this system lets the coolant touch the silicon directly.

At its heart is the Si-Integrated Micro Cooler (IMC-Si), a tiny network of microfluidic channels built into the chip’s backside. These channels circulate coolant through the silicon itself, removing heat almost instantly.

The results are impressive: a thermal resistance of just 0.055 °C/W, 15% better than traditional liquid cooling. Chips using DSLC have sustained over 2.6 kW TDP while staying under 63°C, a milestone once thought impossible for 3D chip designs.

techovedas.com/tsmc-on-fire-at-300-stock-records-geopolitical-pressure-and-future-outlook-2025

Part of the CoWoS® Ecosystem

This innovation fits perfectly into TSMC’s CoWoS® (Chip-on-Wafer-on-Substrate) platform — the technology powering AI chips from NVIDIA, AMD, and other hyperscalers.

As CoWoS designs grow larger — integrating multiple logic dies and HBM stacks — heat becomes the main bottleneck. DSLC breaks that barrier, allowing “super carrier” CoWoS generations with up to 9 reticles and 12 HBM4 stacks to run safely at full speed.

TSMC’s approach also integrates with backside power delivery (BSPDN) and deep trench capacitors (eDTCs), forming a complete thermal–electrical optimization ecosystem.

/techovedas.com/tsmc-on-fire-at-300-stock-records-geopolitical-pressure-and-future-outlook-2025/

The Science Behind It

The brilliance lies in microfluidics. TSMC etched microscopic channels — shaped like tiny pillars and trenches — inside the silicon. These structures create turbulent coolant flow, pulling heat directly from active regions.

The coolant (often deionized water) travels through sealed channels without leaks or electrical interference. It’s efficient, clean, and fully compatible with 1.6nm-class process nodes.

Powering the AI Era

For AI accelerators and data centers, this breakthrough changes everything.

By reducing thermal resistance, DSLC lets chips run faster and cooler, improving performance per watt. Hyperscale operators could cut cooling costs by up to 50%, slashing energy use and carbon footprint.

And it doesn’t stop at the cloud. Compact IMC-Si modules could cool edge AI, autonomous vehicles, or AR/VR systems — anywhere heat limits performance.

A Transformative Leap Toward Sustainable Computing

Dr. Kevin Zhang, TSMC’s Deputy Co-COO and Senior VP, summarized the impact best:

Direct-to-Silicon Liquid Cooling breaks the thermal wall, unlocking the full potential of CoWoS® for exascale AI. This isn’t just incremental; it’s transformative for sustainable computing.”

Indeed, this innovation pushes the industry closer to a “cool computing era”, where performance scaling continues without the environmental and power costs of massive cooling farms.

As AI workloads grow exponentially, thermal efficiency will define the next decade of semiconductor leadership. TSMC’s latest breakthrough ensures it stays ahead — not just in transistor density, but in the physics of heat itself.

https://medium.com/@kumari.sushma661/710m-at-risk-what-we-must-know-about-u-s-export-curbs-on-chinese-blacklisted-subsidiaries-6b90dbc98ea2

Conclusion: The End of the Thermal Wall

TSMC’s Direct-to-Silicon Liquid Cooling is not just an engineering marvel — it’s a roadmap for the future of semiconductors.

By integrating cooling into the heart of the silicon, TSMC has turned one of computing’s hardest problems into a solved equation.

As chips grow larger, faster, and more complex, this technology could redefine how the world builds AI infrastructure — cooler, greener, and infinitely scalable.
