VLSI Chip Fabrication: How Does a Bare Silicon Wafer Transform into a Powerful Microchip?

VLSI chip fabrication process step by step, from oxidation and lithography to doping, gate formation, metalization, and final testing. Learn how engineers create billions of transistors that power today’s technology.

Introduction

The journey from a simple silicon wafer to a powerful microchip is one of the most fascinating stories in modern technology. Behind every smartphone, laptop, or AI accelerator lies a complex fabrication process that turns a pure slice of silicon into billions of transistors working in perfect harmony. In this article, we will break down the VLSI (Very Large Scale Integration) fabrication process, step by step, to understand how semiconductor engineers create the heart of modern electronics.

Key Takeaways Of VLSI fabrication

  1. Silicon wafers are the starting point for all semiconductor devices.
  2. Oxidation and lithography define precise regions for transistor creation.
  3. Doping and gate formation establish the transistor’s electrical properties.
  4. Metalization and interconnects link billions of transistors into functional chips.
  5. Testing and passivation ensure reliability and durability in electronic devices.

1. Start with a Blank Silicon Wafer

The VLSI fabrication process begins with a single-crystal silicon wafer. Engineers choose silicon, a semiconductor element, for its precise control over electrical current.

Manufacturers slice wafers from cylindrical silicon ingots grown using the Czochralski process.

They polish each wafer to mirror-like smoothness and lightly dope it to adjust its electrical properties. These wafers then provide the blank canvas for building intricate transistor circuits.

2. Oxidation: Creating the Silicon Dioxide Layer

After preparing the wafer, engineers heat it in a high-temperature furnace, where oxygen or steam reacts with the silicon surface to form a silicon dioxide (SiO₂) layer.

This layer, typically about 1 micrometer thick, acts as an insulator and protects the silicon while defining areas for future transistor structures.

Oxidation is critical because it allows precise control of electrical properties at the surface.

3. Photoresist Application: Coating the Wafer

Next, the wafer is coated with photoresist, a light-sensitive organic polymer.

This coating is applied using a technique called spin coating, where the wafer spins at high speed to achieve a uniform thin layer.

The photoresist serves as a stencil for patterning the silicon dioxide layer underneath, allowing selective modification in later steps.

4. Lithography: Defining Patterns with Light

Lithography is the key step that transfers circuit patterns onto the wafer. Using ultraviolet (UV) light and a photomask, engineers expose specific regions of the photoresist.

The exposed areas either harden or become soluble, depending on whether a positive or negative photoresist is used.

This step allows precise definition of transistor gates, interconnects, and other microstructures down to the nanometer scale.

5. Etching: Revealing the Silicon

After exposure, the wafer undergoes etching to remove unwanted silicon dioxide from exposed areas.

Engineers use hydrofluoric acid to selectively dissolve SiO₂, exposing the silicon for dopant introduction.

They perform etching using either wet chemical solutions or dry plasma techniques, choosing the method based on the required precision.

6. Dopant Implantation or Diffusion: N-Well Formation

Next, engineers modify the silicon’s electrical properties by introducing dopants. They create n-type regions (n-wells) by implanting arsenic or phosphorus ions into the exposed silicon or by diffusing these elements thermally in a furnace

This step creates regions where electrons dominate as charge carriers, a fundamental aspect of CMOS transistor operation.

7. Strip Photoresist and Oxide

After doping, the remaining photoresist and oxide layers are stripped away from undesired areas.

This ensures a clean surface for subsequent processing steps and prevents unintended electrical characteristics in the transistor.

8. Gate Oxide and Polysilicon Deposition

One of the most critical layers in a transistor is the gate oxide, typically only a few nanometers thick. This ultrathin layer is grow thermally and allows the gate to control current flow with high precision.

On top of this, polysilicon is deposit via Chemical Vapor Deposition (CVD). Polysilicon acts as the transistor gate, controlling the flow of current between source and drain regions.

9. Polysilicon Patterning

Polysilicon is then patterned using lithography and etching to form the gate structures of the transistor. The accuracy of this step is crucial, as it determines the performance, speed, and power consumption of the final chip.

Today’s cutting-edge chips have gate lengths in the range of 5–3 nanometers, smaller than the width of a human DNA strand.

10. Source and Drain Formation

Using a self-aligned process, the source and drain regions are implanted with n+ or p+ dopants adjacent to the gate.

This ensures that the transistor can switch on and off effectively. Precise alignment is critical because any misalignment could degrade performance or cause device failure.

11. Contact Formation

With the transistor structure in place, engineers deposit a thick field oxide and etch contact holes where electrical connections will be made.

These holes expose the underlying source, drain, and gate regions, allowing metal layers to form connections that integrate transistors into functional circuits.

/techovedas.com/635m-semiconductor-aid-rapidus-leads-japans-chipmaking-revival/

12. Metalization: Wiring the Chip

Engineers coat the wafer with a metal layer, usually aluminum or copper, and pattern it to create interconnections between transistors.

This wiring step links isolated transistors into a cohesive integrated circuit that executes complex computations.

They then stack multiple metal layers with insulating layers in between to maximize connectivity and performance.

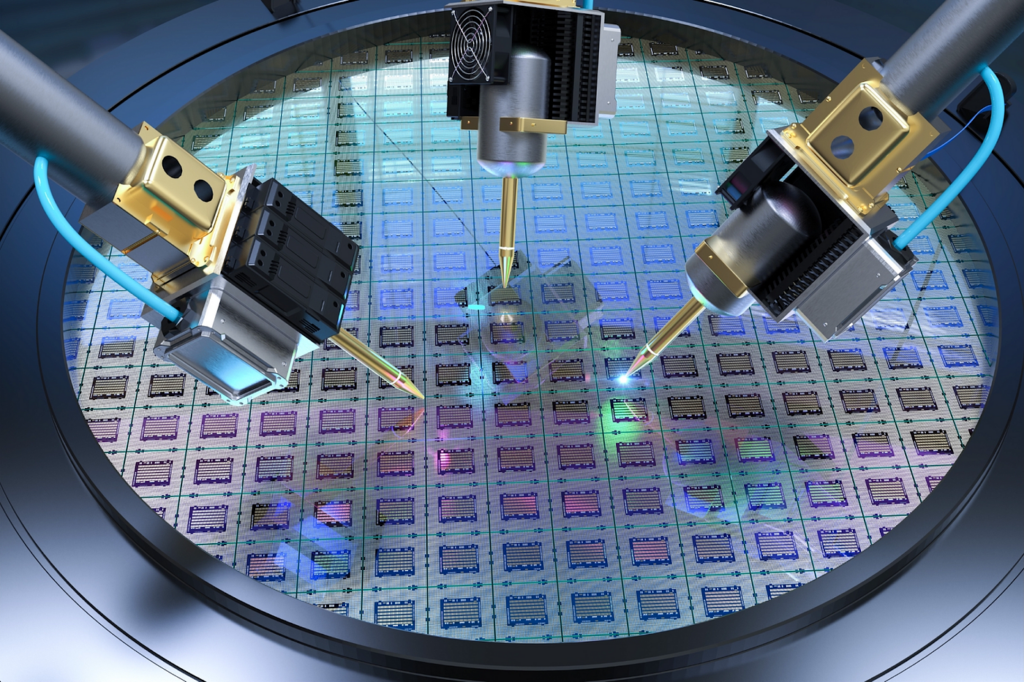

13. Final Processing and Testing

Finally, engineers coat the wafer with a passivation layer to shield the chip from environmental damage.

They then dice the wafer into individual chips and rigorously test each one for functionality.

Engineers discard defective chips and package the functional ones before shipping them for use in smartphones, computers, AI accelerators, and other electronic devices.

https://medium.com/@kumari.sushma661/indias-first-homegrown-microprocessor-shines-at-semicon-2025-vikram-32-bit-processor-3c96b910f4dd

Conclusion

The entire VLSI fabrication process relies on precision, cleanliness, and material science.

This meticulous layering and controlled modification of materials are what make modern electronics powerful, energy-efficient, and reliable.
